Silmaril is a new beam combiner designed for high sensitivity. It combines the light from 3 beams in the near-infrared H and K bands. Commissioning of the Silmaril combiner is ongoing.

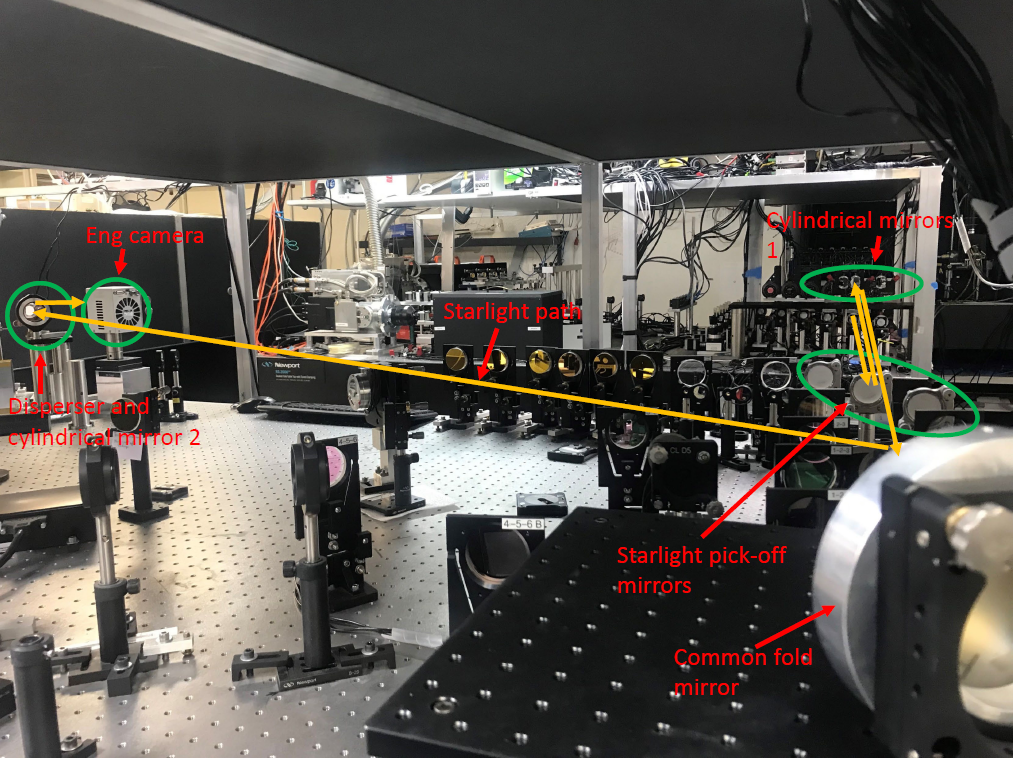

The Silmaril beam combiner was designed to achieve high sensitivity, and it was installed in the lab in early 2023. Silmaril features a low noise C-RED One detector using electron avalanche photodiode (e-APD) technology from First Light Imaging. The instrument uses bulk optics, rather than single-mode fibers, with a minimum number of optical elements to maximize throughput. The current design is limited to 3 beams to have the capability of measuring closure phases, while not diluting the incoming light with more combinations. An edge filter provides simultaneous data in the H and K-bands with a spectral resolving power of R=35.

An initial commissioning run on UT 2023 July 5-6 succeeded in recording 3-telescope fringes on sky using a C-RED 2 camera. We are waiting for the final delivery of the C-RED 1 detector. Based on performance with the C-RED 2 and simulations, we expect to achieve a limiting magnitude of H=10-11 mag with the final system.



Observing and Data Reduction

Silmaril Software Description



Instrument Papers:

Design of the new CHARA instrument SILMARIL: pushing for the sensitivity of a 3-beam combiner in the H- and K-bands Lanthermann et al. 2022, SPIE, 12183.

CHARA/Silmaril Instrument Software and Data Reduction Pipeline: Characterization of the Instrument in the Lab and On-Sky Anugu et al. 2024, SPIE



Technical Reports:

CLASSIC/CLIMB++: What should it be?, T. ten Brummelaar, M.-A. Martinod, & P. Tuthill

SILMARIL: Optical Layout and Implementation, T. ten Brummelaar & P. Tuthill

SILMARIL: H Band Input Filter Specification and RFI, T. ten Brummelaar

SILMARIL: K Band Input Filter Specification and RFI, T. ten Brummelaar

SILMARIL: Edge Filter Specification and RFI, T. ten Brummelaar

SILMARIL: Commissioning and First On-Sky Tests, T. ten Brummelaar

A Technical Report on a dichroic edge filter for Silmaril, C. Lanthermann
